This page details the recommended tools:

---

IAR Embedded Workbench

IAR Embedded Workbench for ARM is a complete, powerful development environment for ARM-based devices from all major vendors. The sample project is provided as an IAR EWARM project and the IAR Kick Start Kit comes with a 1 month trial license. IAR EWARM

---

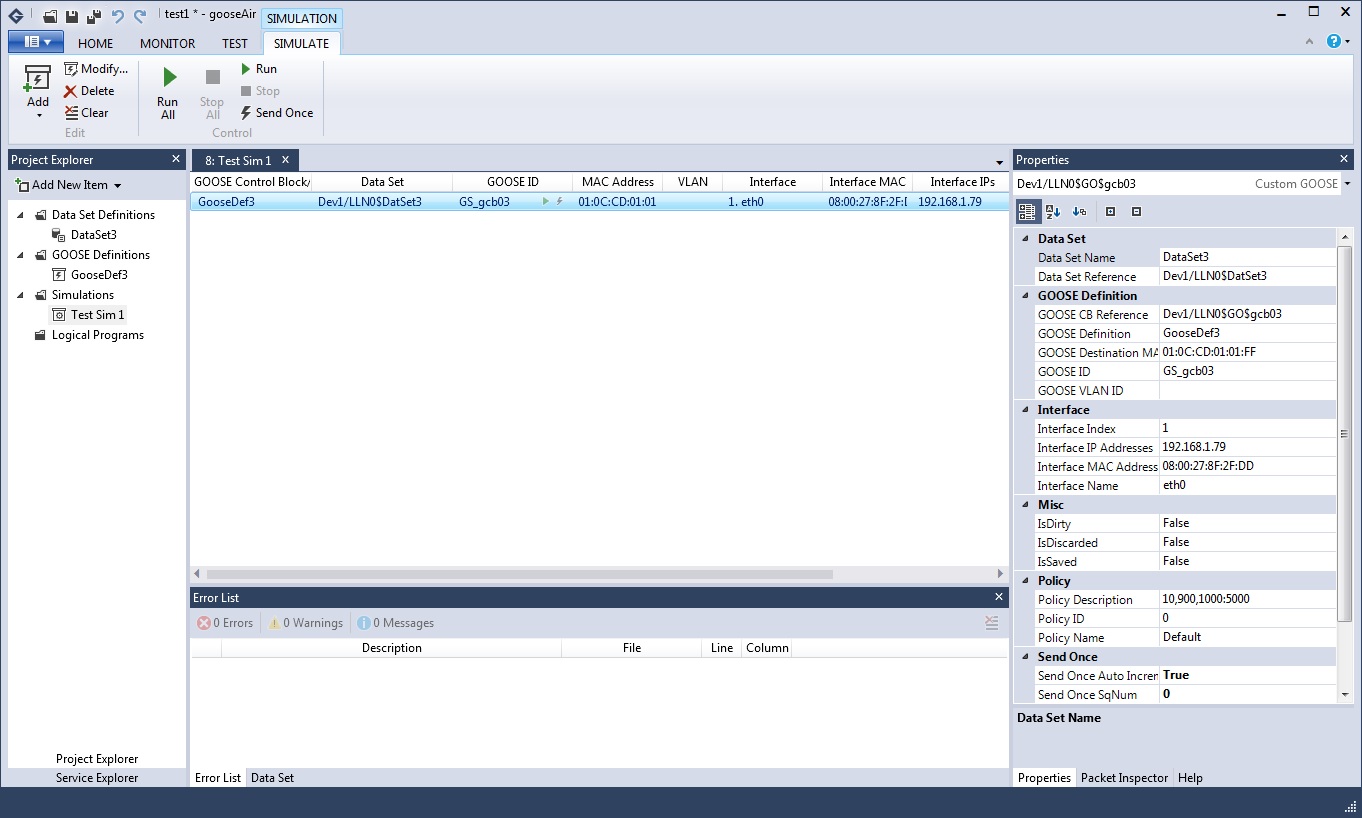

GooseAir

Sending test GOOSE packets can be easily done using the gooseAir from GridSoftware.

gooseAir

gooseAir is the IEC 61850 Engineering Software designed to help you in all aspects of the IEC 61850 engineering processes: from the IEC 61850 Project & IED content analysis, to monitoring, simulation and testing of performance critical Protection & Control systems based on the IEC 61850 MMS Client/Server or GOOSE messaging.

Built-in Function Block Diagram editor along with monitoring, simulation and measurement features will allow users perform the most complex test scenarios and record test results in few steps.

With gooseAir you can:

• Explore the IEC 61850 SCL files
• Act as the MMS Client and connect to 100s of IEDs
• Simulate 100s of IEC 61850 MMS Servers
• Monitor Process Bus sampled Values
• Simulate Process Bus Sampled Values
• Monitor & Troubleshoot IEC 61850 Data Content
• Connect to and Analyze the HSR/PRP networks
• Create normal or abnormal system network conditions
• Write and record complex Logic Test Cases
• Measure performance of the IEC 61850 Networks or IEDs
• Record and Export Test results in Excel, XML or PDF formats

GooseAir

---

WireShark

Wireshark is the world's foremost network protocol analyzer. It lets you see what's happening on your network at a microscopic level. It is the de facto standard across many industries and educational institutions. WireShark
